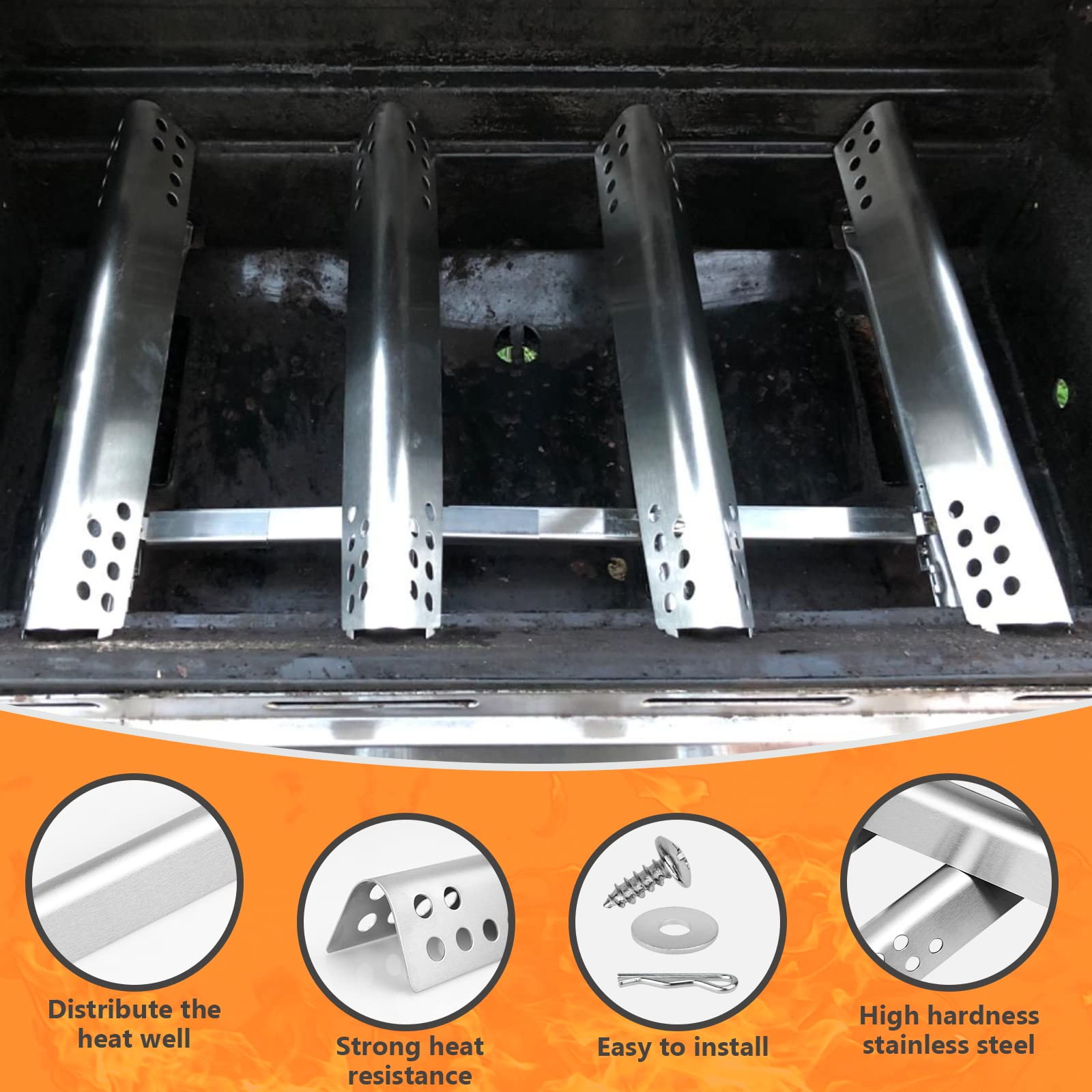

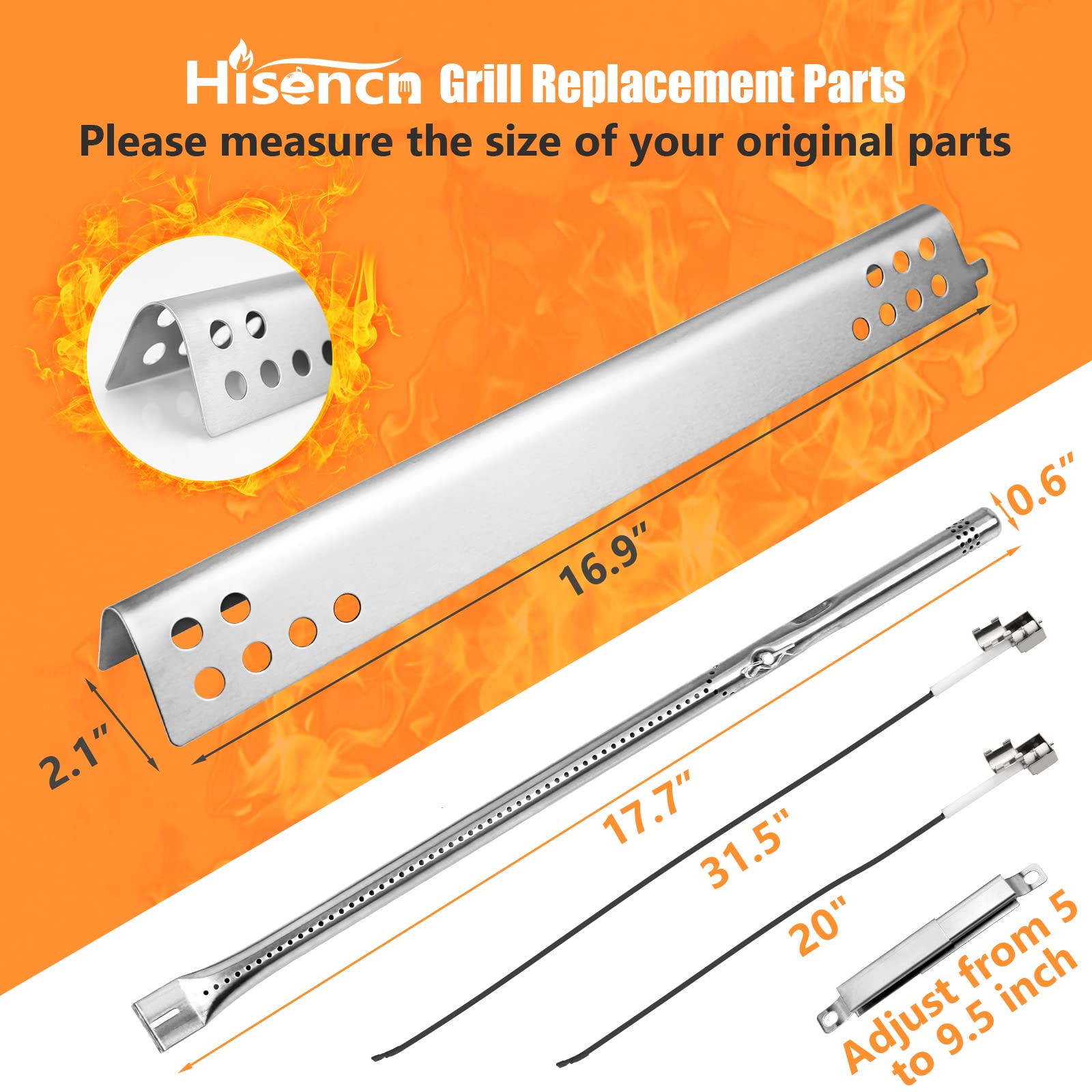

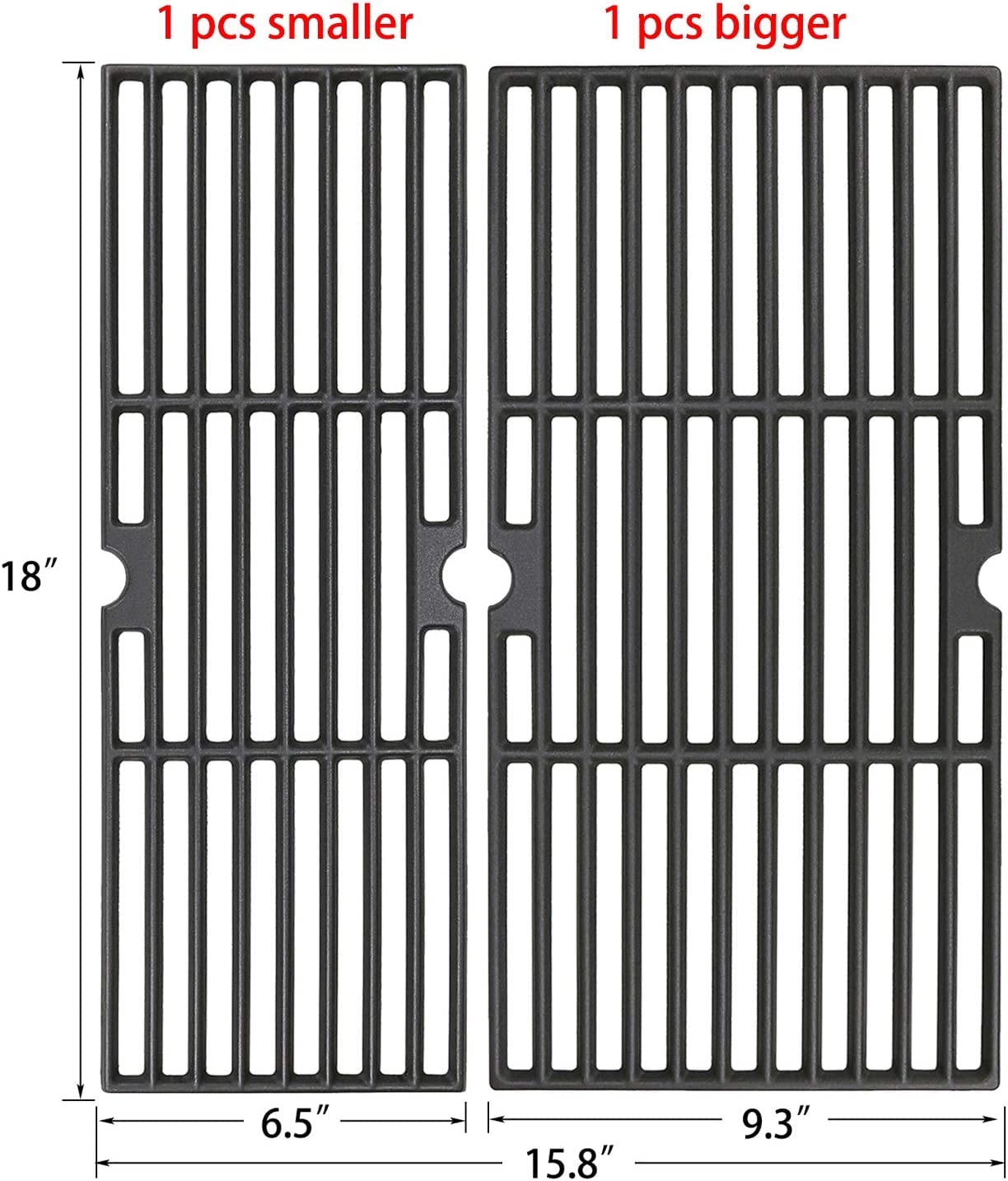

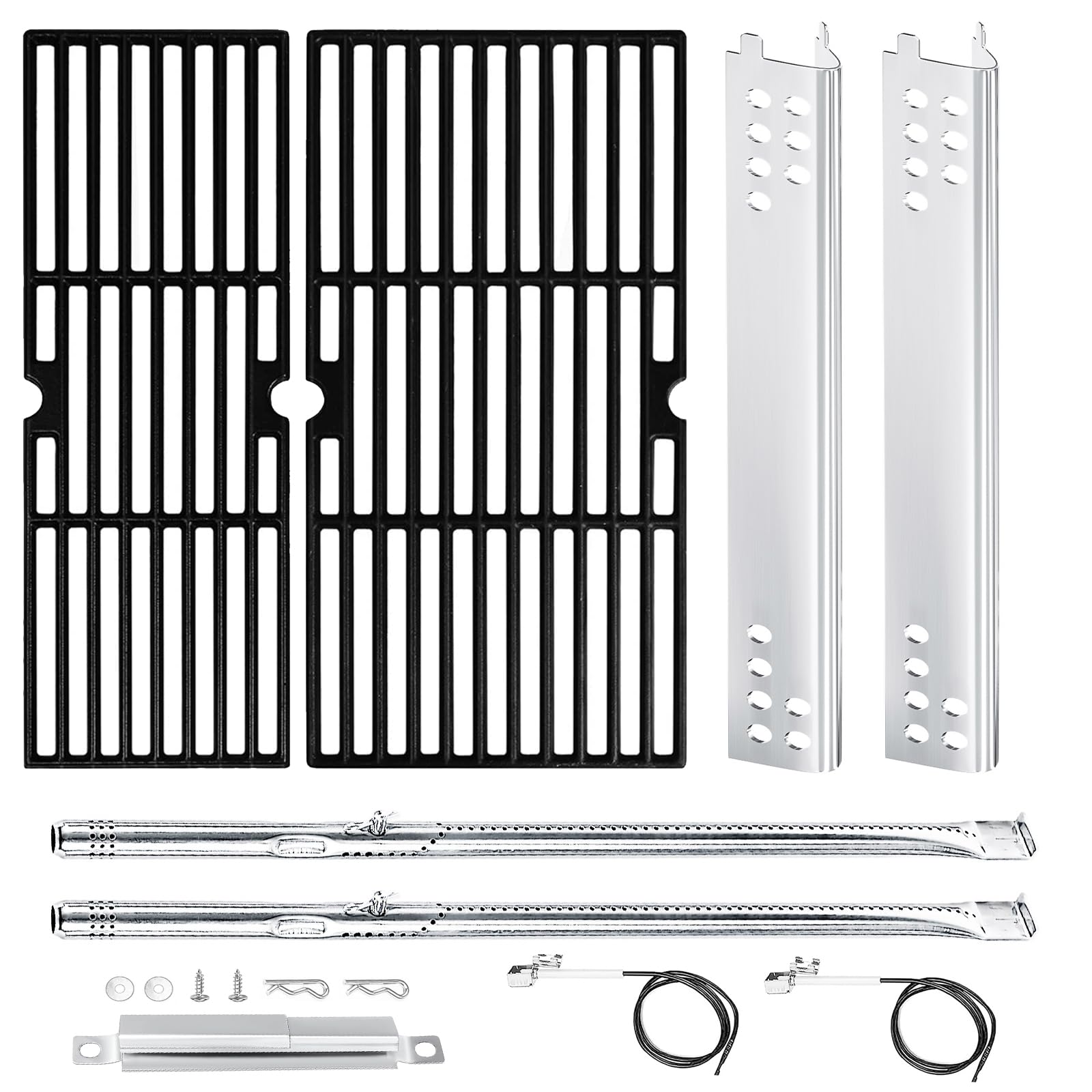

Grill Replacement Parts for Charbroil Performance Grill Grill burner: 17 3/4" x 3/5", original parts number: g470-5200-w1Heat plates: 16 15/16" x 2 1/12", original parts number: g470-0004-w1Grill grates: total 18" x 15.8", original parts number: g470-0003-w1Adjustable carry over tube: adjust from 5 to 9.5 inch The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked. Previous page Next page 1 Sturdy Iron 2 Durable Steel 3 Heat Evenly 4 Save Money 5 Choose Parts Dimension & Compatible Models 1 x bigger & 1 x Smaller Grate Cooking grates for charbroil performance 2 burner grill 463673517, 463673617, 463673017, 463625217, 463673619, 463625219, 463673019, 463673519 1 x bigger & 2 x Smaller Grate Cooking grates for charbroil performance 4 burner grill 463376419, 463376519, 463376319, 463375619, 466347019, 463375719, 463332719, 463335519, 463376619, 463376819, 463377319 gas grill 1 x bigger & 3 x Smaller Grate Cooking grates for charbroil performance 5 burner grill 463275517, 463275717, 463243519, performance 6 burner grill 463274819, 463274919,463274619 2 x bigger & 1 x Smaller Grate Cooking grates for charbroil performance 4 burner grill 463361017, 463347418, 463349917, 463376217, 463376017, 463377017, 463377117, 463377217, 463332718, 463376117, 463347017, 463335517, 463376018p2, 463376017p1, 466347017, 466335517, 466339417 gas grill 475； ►cooking grate for charbroil performance 5 burner 463347519, 463373019, 463373319, 463347518, 463243518 3 x bigger & 1 x Smaller Grate Cooking grates for charbroil performance 6 burner grill 463361017, 463347418, 463349917, 463376217, 463376017, 463377017, 463377117, 463377217, 463332718, 463376117, 463347017, 463335517, 463376018p2, 463376017p1, 466347017, 466335517, 466339417 gas grill 475； ►cooking grate for charbroil performance 5 burner 463347519, 463373019, 463373319, 463347518, 463243518 How to Rebuild Your Charbroil Grill Burner Repair and Ignitor Install Burner and Ignitor First, remove all the old parts, firmly install the electrode at the snap position of the grid burners, and connect the wire. Fixed Burners and Ignition Box Second, hold the side channel and carryover tubes in place with cotter pins. Test the Ignition Device Third, light them and check the flame of the burners. Blue flame represents full combustion. Enjoy BBQ Time High-quality stainless steel heating tent-used to catch grease drips, add smoky flavor to your food, and protect the burners from grease drips. More Grill Accessories for Charbroil Performance Grill Previous page Grill Grates for Charbroil Cast iron grill grates not only heat evenly and retain heat superbly, but also deliver professional searing, able to give prominent sear marks to meat or veggie. Learn More SUS 304 Standless Steel 1.0MM thickeness heat plate not easy to deform when burning, heavey duty and more durable. They can be used for a long time, which saves you a lot of money. Learn More Grease Pan & Grease Cups Made of premium aluminum alloy and 100% recyclable aluminum, the grease collection cup is high-temperature resistance, not easy to rust. Learn More Premium Grill Igniter Electrode Package includes 4 x electrode igniters; The length of two wires is 20 inches (51CM) and the other two are 39.37 inches (100CM). Long enough to connect the burner. Learn More Universal Carryover Tube Good for about any length from 5" to 9.5" with OEM Instructions to learn how to properly adjust crossover tubes. Fits most of Grills. Learn More Grill Warming Rack Porcelain steel warming rack is made of porcelain steel, easy to clean. Learn More Next page Does the kit come with electroids？ Repair kit includes 2 x grill burners, 2 x heat plates, 1 x adjustable crossover tube, 2x grill igniters, 1 bigger and small grates, 1x instruction and hardware parts package. Should crossover tubes become glowing red hot and some flame flaring at their ends? Crossover tubes should not be glowing red. Check to ensure tubes are clear of any blockage and air mix is correct with a blue flame. What are the screws for? They go on the burners to hold the side channel in place with cotter pins.
