Set of 2 quality dividing indexing plates for HV8/ 10/ 12/ 14 Rotary tables. Number of the holes of dividing plates, A-Plate 28, 32, 37, 39, 43, 46, 49, 53, 59, B-Plate 63, 69, 73, 79, 83, 89, 93, 99
The set comprises of 2 plates but actually having different number of holes on each side. This means that a user can use it from both the sides of a plate, basis his required applications. Check out the no. of holes details on each side in the description below.
Diameter of the plate is 7" and its thickness is 0.47 " Inches (12 mm) approx. All required accessories are included as photograph. No manual is included, please note.

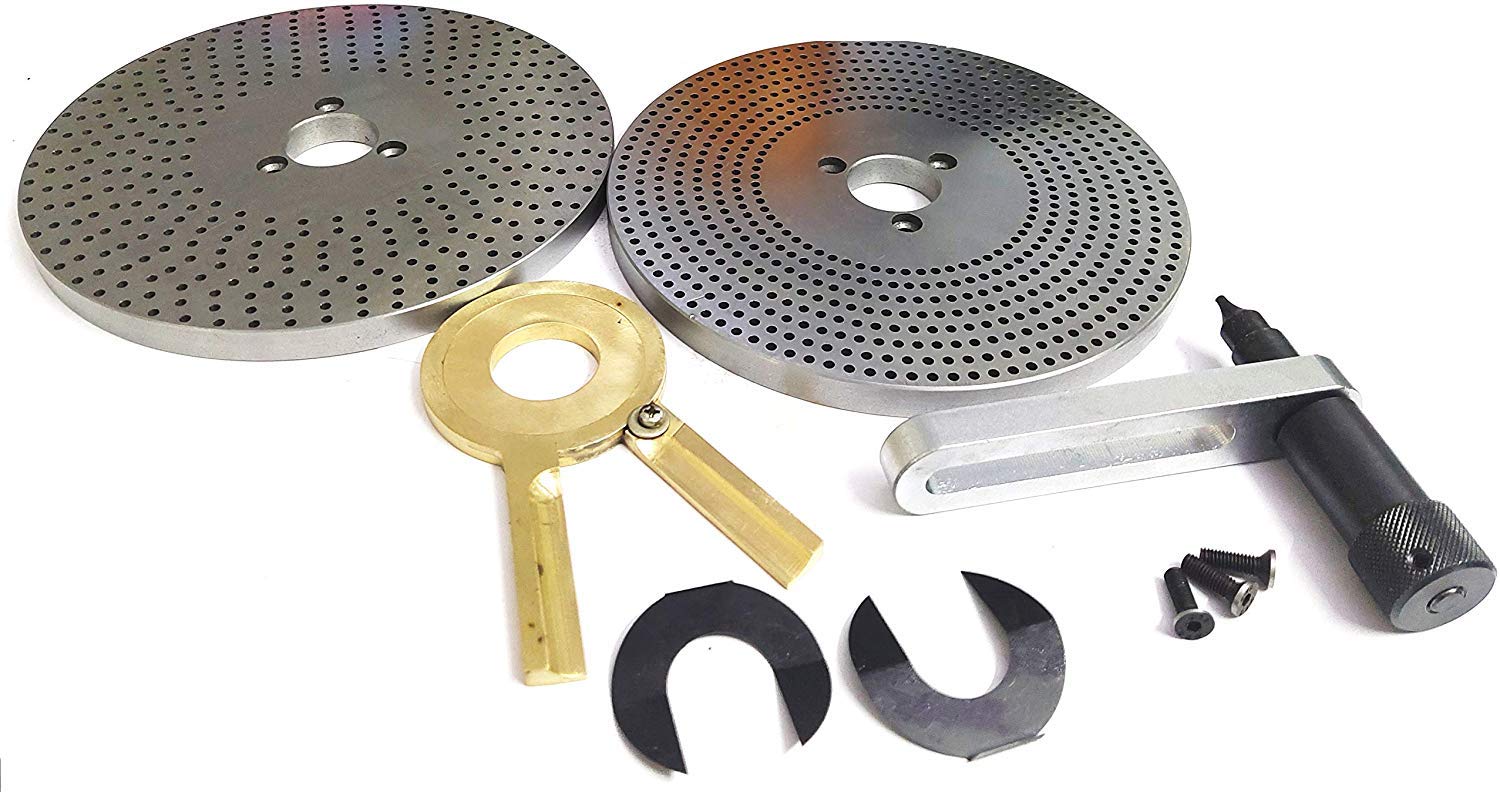

A set of Steel Dividing Plates for Indexing with all required Accessories.
Ideal for both vertical and horizontal milling machines, like rotary tables in HV-8(8inch), HV-10(10inch), HV-12(12inch), HV-14(14inch), TS200, TS250, TS320, TS400.
